Customized SunPower Solar Flexible Panels 130w For Rv Marine Motor Boat Yacht

Ask Lasest Price
Brand Name :	Ahonypower
Model Number :	eGo S130w
Supply Ability :	3000 Piece/Pieces per Month
Price :	$140.00/pieces 4-99 pieces

Add to Cart

Product Details
Company Profile

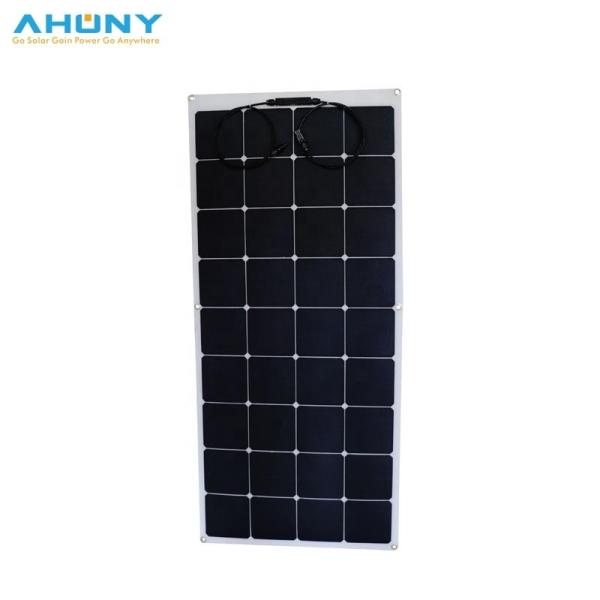

Customized SunPower Solar Flexible Panels 130w For Rv Marine Motor Boat Yacht

130w SunPower Solar Panel Flexible Solar Panel Hight Efficiency Back Contact Solar Cell For Rv Vehicles Motor Boat Yacht

Product Description

eGo S flexible solar panel uses high efficiency solar cell,USA back contact SunPower cell,cell efficiency is 24.4%.ETFE surface from Japan,it can resist high temperature at 242℃,material transmittance is over 95%.More over,it has excellent tensile strength,low water absorption,makes the flexible panel higher waterproof.

eGo S is more flexible than conventional cell flexible like eGo P,it can bend 30° arc at maximum,It’s aerodynamic design that can reduce wind resistance when install on rooftop of RV or yacht.

eGo S is perfect for all mobile use like caravan,boat,marine,motor etc.There are different power and size from 7w to 220w.Also two colours white and black can be used for any panel.Currently flexible solar panel is widely used for mobile,marine,camping industry,Now more and more people concern about eGo S flexible.

It's one of the best seller eGo S130w has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery.

Main advantage

-Back contact solar cells,efficienty is up to 24.4%;
-resilient,thin,light and aerodynamic design;
-ETFE surface,more weather resistance;
-Waterproof Jbox that is full of silicon gel;
-Customize is acceptable.

-Factory direct,best price at the same quality.

Now more and more people who use cigs semi flexible solar panel before now use crystalline mono,poly or SunPower flexible solar modules.

Model No.	eGo S130w
Model No.	eGo S130w
Maximum Power[Wp]	130
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*9
Cell Efficiency	24.4%
Size[mm]	540x1200x3
Max Power Voltage Vmp[V]	22.03
Max Power Current Imp[A]	5.90
Open Circuit Voltage Voc[V]	26.00
Short Circuit Current Isc[A]	6.26
Net.Weight[kg]	5.2
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS, IEC for ETFE surface
Surface/Backsheet	Japan ETFE/white(white is standard and most common,can be black too)
Maximum bend radius(θ)	30°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Warranty	Power output will be at least 95% after 5 years and more than 85% after 10 years,2 years repair/replacement.
